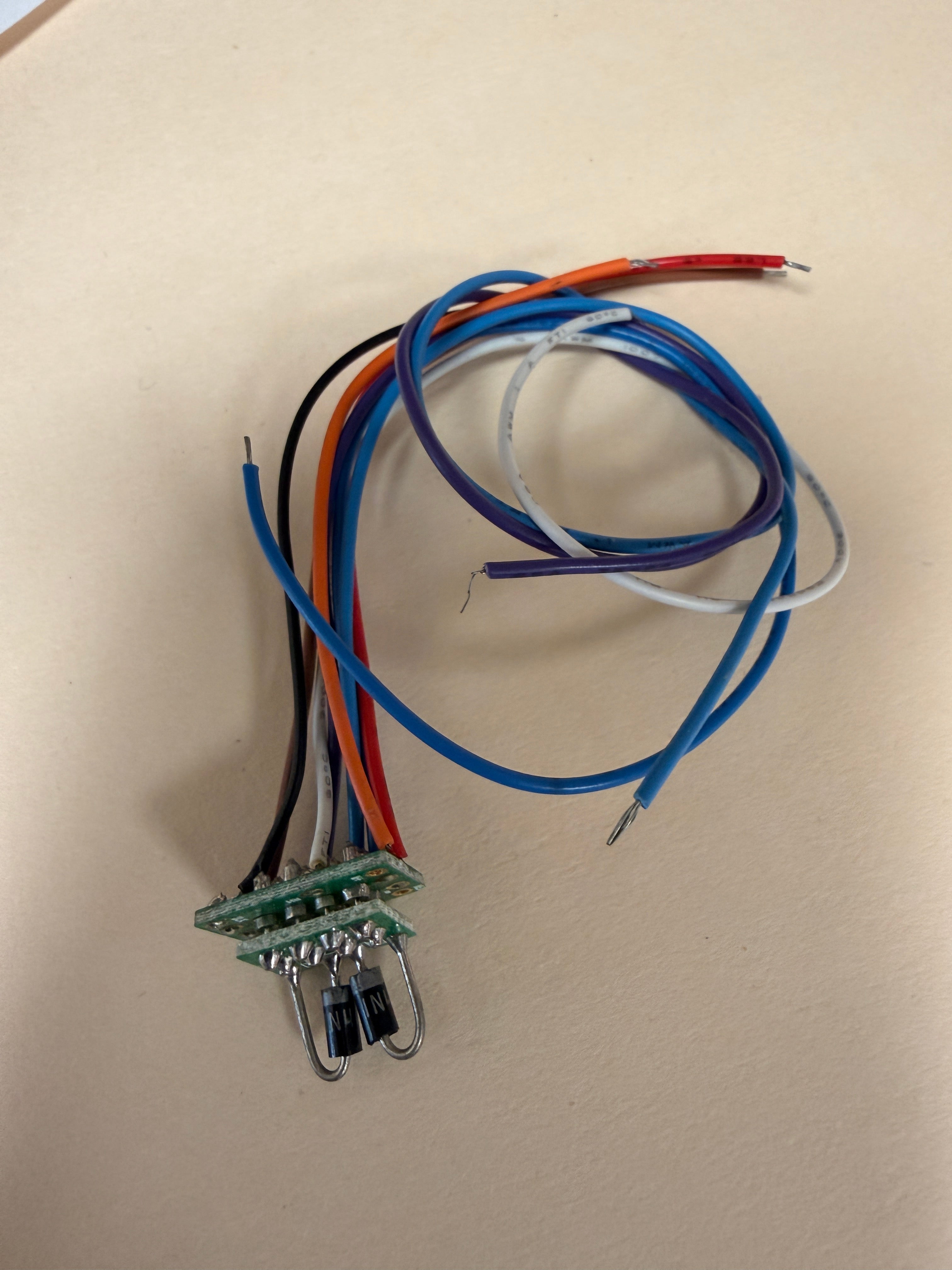

AMERICAN MODELS DCC WIRE HARNES

DCC Made Simple

December 15, 2025

9 Wires Total

Red: Pick up Wires

Black: (2) Ground

Brown: Red Dot Side for 3 axle Locos, opposite for 2 axle locomotives

Orange: Red dot side for 2 axle Locos, opposite for three axle locomotives.

LED CONNECTINS FOR STANDARD TYPE

(with black and white wire)

Blue: (2) Common to each other, long wire to front, short to rear. Blue wires should connect to the white wire of the LEDs

Purple: (front light) connect to the black wire of LED.

White: (rear light) connect to the black wire of LED

LED CONNECTION FOR PREMIUM TYPE

(with red and black wires)

Blue: (2) Common to each other, long wire to front, short to rear. Blue wires should connect to the red wire of the LEDs

Purple: Front light should connect to the black wire of the LEDs

White: Rear light should connect to the black wire of the LEDs

RS11 CONNECTIONS (with as delivered LED Components)

Blue wires connect to (+) side of both bords

Purple wire connects to (–) side, front bord

White wire connects to (–) side, rear bord
